The pic quality is not good because my scanner is crapping out. Here are some of the pics

Block is a custom made 5/8" watersink style multichanel parallel flow block that is milled to 2mm thick and has very good flow. Water temps stabilize at 3C above ambient at full load. Loop 1 is on a 3000L/hr pump while loop 2 the recycling loop is on a 1200L/hr pump. Pelts are run at 18.2v and 18.4v through 2 AT PSUs in series each. The PSUs modded to have a blow hole each so that they do not get too hot. CPU is a AYHJA 1.33 TBird.

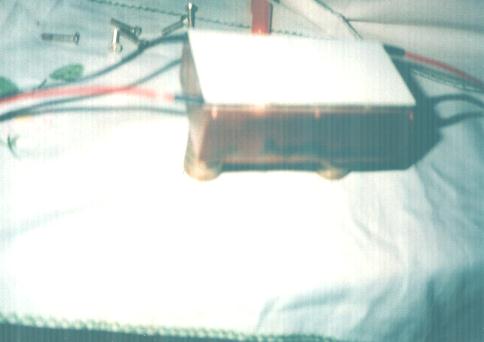

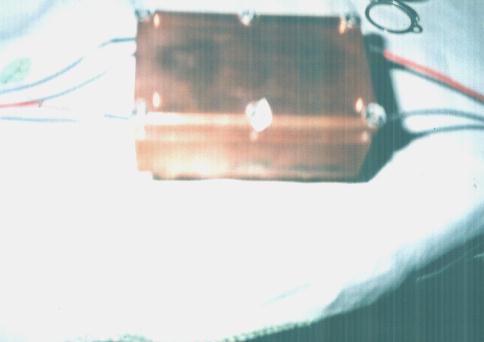

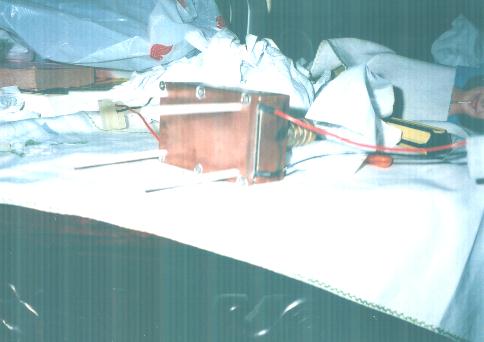

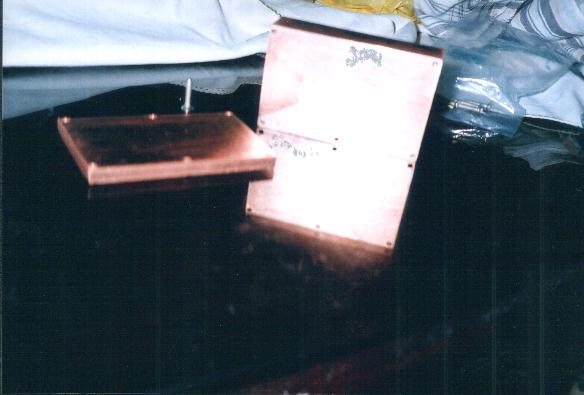

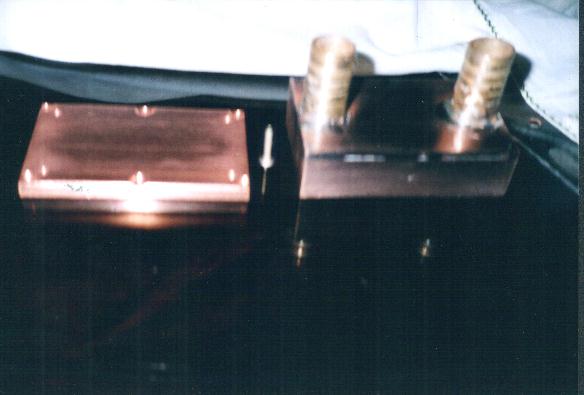

Here's the pic of my block and 6.5mm thick cold plate and the dual pelts

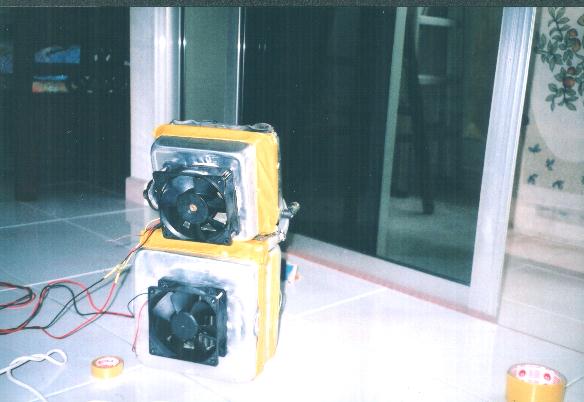

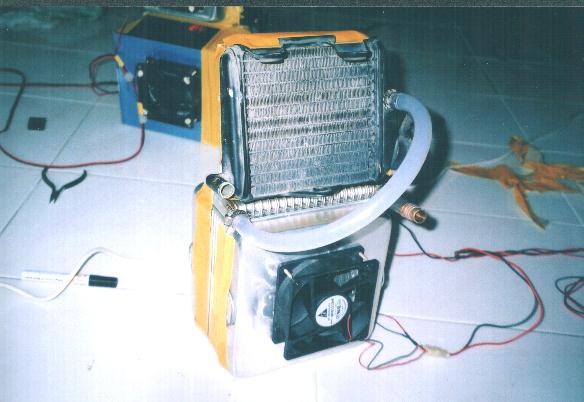

Here's loop 1 the main waterblock loop

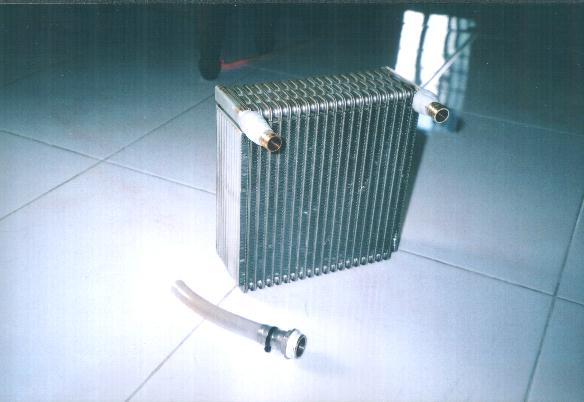

Here's my fav heatercore used in loop 1

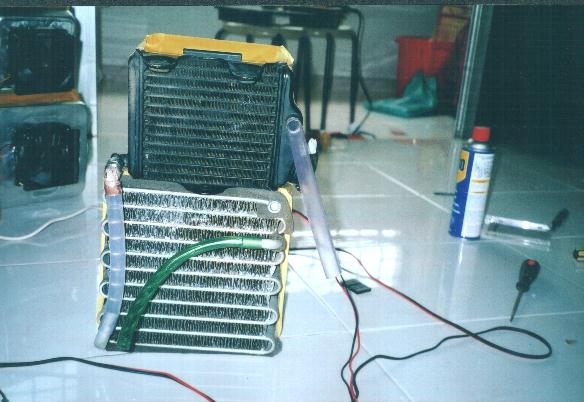

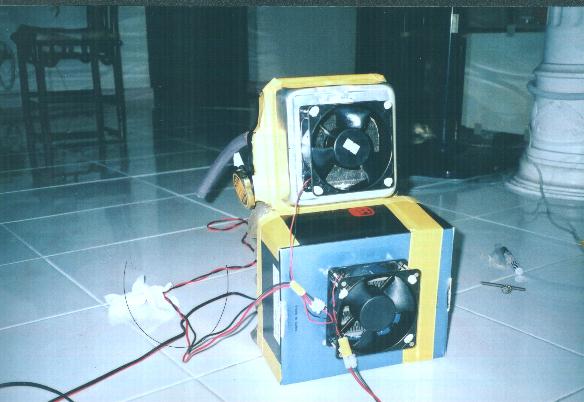

Here's loop 2 ,the loop cycling reservoir water
